Load-bearing roller Series 30
- Load-bearing roller with Bead
- Rust-proof
Counter bearings
Driven load-bearing rollers for circular belt drive with one or two beads. The rollers are produced with anti-static detailing. Bearing: Series 16, 20 or 25
Variants
Series | Variant |
---|---|
30.1 | Support roller with 1 pleat |
30.2 | Support roller with 2 pleats |
30.x | Support roller with „x“ pleats upon request |

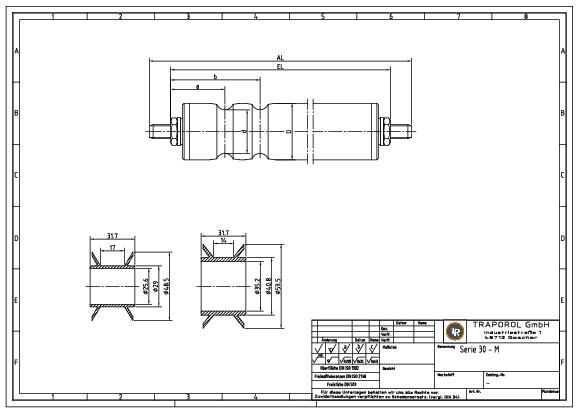

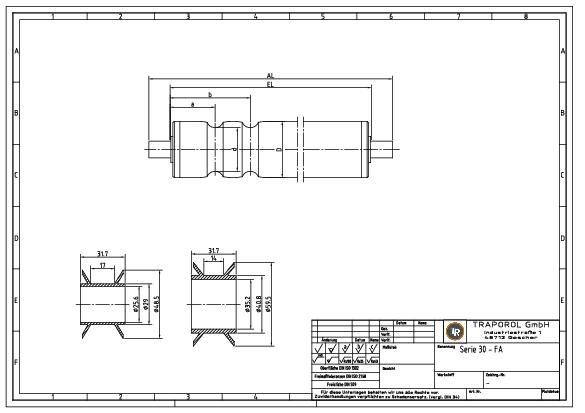

Bead dimensions
Tube | Belts Ø | a min | a-b min | d min |
---|---|---|---|---|
50 x 1,5 | 5 | 40 | 35 | 40 |
60 x 2 | 6 | 40 | 35 | 48 |
80 x 2 | 6 | 40 | 35 | 68 |
Relationship EL/RL
Tube Ø |
---|
mm |
